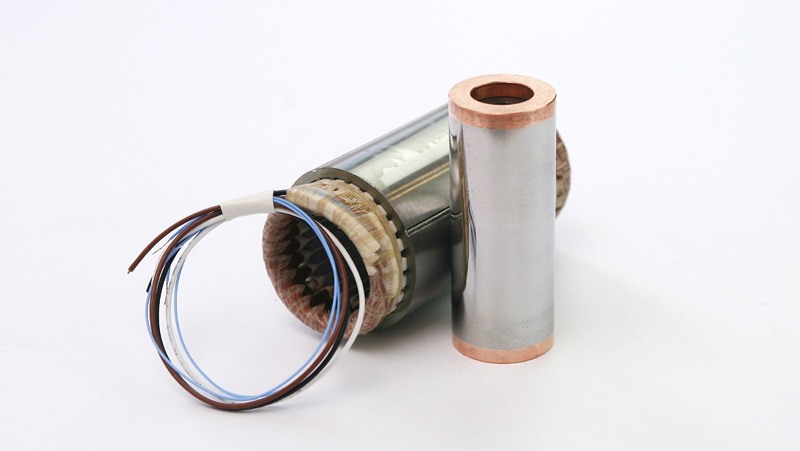

A2P-S40

product_inner

Notes of Dimensions

product_inner02

A2P
S40
1. Outer dia. of the stator 40
2. Inner dia. of the stator 22
3. Laminated length of the stator 20~80
Front/Rear F R
4. Height of the end-winding Ld 6.5 8.5
Hd 8 10
5. Outer dia. of the rotor 21.6
6. Inner dia. of the rotor/max. Cu 10/13
Al 10/13
7. Width of the-ring 3
8. Height of the-ring 4
9. Outer dia. of the end-ring 21.6

A2P-S40

AL/LD V10
10krpm
167Hz
V20
20krpm
333Hz
V30
30krpm
500Hz
V40
40krpm
667Hz
V50
50krpm
833Hz
V60
60krpm
1000Hz
V70
70krpm
1167Hz
V80
80krpm
1333Hz
V90
90krpm
1500Hz
Speed
L20 (20mm) 0.04 0.15 0.23 0.32 0.40 0.46 0.53 0.57 0.62 Power
[kW]
L30 (30mm) 0.08 0.24 0.39 0.48 0.62 0.75 0.87 0.97 1.06
L40 (40mm) 0.12 0.34 0.50 0.71 0.90 1.03 1.22 1.31 1.43
L50 (50mm) 0.16 0.44 0.69 0.93 1.12 1.36 1.56 1.74 1.90
L60 (60mm) 0.21 0.50 0.82 1.02 1.39 1.61 1.90 2.06 2.30
L70 (70mm) 0.25 0.62 0.97 1.30 1.54 1.91 2.10 2.40 2.72
L80 (80mm) 0.29 0.70 1.11 1.45 1.85 2.24 2.63 2.87 3.08
Laminated
length
Power [kW]
CU/LD V10
10krpm
167Hz
V20
20krpm
333Hz
V30
30krpm
500Hz
V40
40krpm
667Hz
V50
50krpm
833Hz
V60
60krpm
1000Hz
V70
70krpm
1167Hz
V80
80krpm
1333Hz
V90
90krpm
1500Hz
Speed
L20 (20mm) 0.05 0.16 0.24 0.33 0.41 0.47 0.53 0.58 0.63 Power
[kW]
L30 (30mm) 0.10 0.25 0.40 0.49 0.63 0.76 0.88 0.98 1.07
L40 (40mm) 0.14 0.36 0.51 0.73 0.92 1.05 1.23 1.32 1.44
L50 (50mm) 0.19 0.46 0.71 0.95 1.13 1.38 1.58 1.75 1.91
L60 (60mm) 0.23 0.52 0.85 1.10 1.41 1.63 1.92 2.07 2.31
L70 (70mm) 0.28 0.65 1.00 1.33 1.64 1.93 2.12 2.41 2.75
L80 (80mm) 0.32 0.73 1.14 1.47 1.88 2.26 2.66 2.90 3.31
Laminated
length
Power [kW]
  • CU

    The bars and end-rings in the rotor are made from copper to ensure high motor efficiency.
    This also allows for decreased vibrations from rotation as the shaft is thicker than those used in aluminum rotors.

  • AL

    The bars and end-rings in the rotor are made from aluminum which provides an excellent balance between price and performance.

  • LD

    This stator is dipped into the insulation vanish. It is our most common model which is suitable to general spindle motors.

  • HD

    This copper coil of the stator is filled with special resin which helps to decrease the temperature of coils.
