A8P-S180

product_inner04

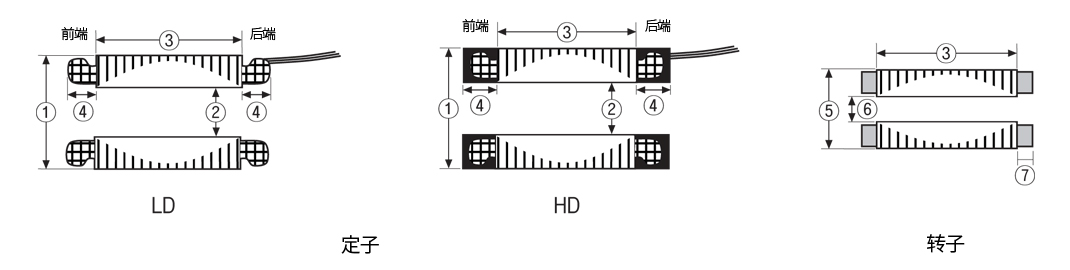

Notes of Dimensions

product_inner02

A8P
S180
1. Outer dia. of the stator 180
2. Inner dia. of the stator 130
3. Laminated length of the stator 100~380
Front/Rear F R
4. Height of the end-winding Ld 30 40
Hd
5. Outer dia. of the rotor 129
6. Inner dia. of the rotor/max. Cu 80/90
Al 80/90
7. Width of the-ring 5
8. Height of the-ring 20
9. Outer dia. of the end-ring 129

A8P-S180

CU/LD V1.5
2krpm
100Hz
V2.0
2krpm
133Hz
V2.5
3krpm
167Hz
V3.0
3krpm
200Hz
V3.5
4krpm
233Hz
V4.0
4krpm
267Hz
V5.0
5krpm
333Hz
Speed
L100 (100mm) 5.30 9.20 12.40 15.90 19.50 20.90 22.30 Power
[kW]
L180 (180mm) 10.50 16.90 23.10 29.40 35.20 36.90 39.00
L260 (260mm) 15.30 25.20 34.80 42.40 51.40 59.10 66.40
L330 (330mm) 18.00 32.00 42.30 53.90 64.50 67.90 71.70
L380 (380mm) 21.20 36.20 50.30 61.30 70.50 75.40 82.70
Laminated
length
Power [kW]
  • CU

    The bars and end-rings in the rotor are made from copper to ensure high motor efficiency. This also allows for decreased vibrations from rotation as the shaft is thicker than those used in aluminum rotors.

  • AL

    The bars and end-rings in the rotor are made from aluminum which provides an excellent balance between price and performance.

  • LD

    This stator is dipped into the insulation vanish. It is our most common model which is suitable to general spindle motors.

  • HD

    This copper coil of the stator is filled with special resin which helps to decrease the temperature of coils.
