A4P-S106

product_inner03

Notes of Dimensions

product_inner02

A4P
S106
1. Outer dia. of the stator 106
2. Inner dia. of the stator 65
3. Laminated length of the stator 40~150
Front/Rear F R
4. Height of the end-winding Ld 23 25
Hd 25 28
5. Outer dia. of the rotor 64.4
6. Inner dia. of the rotor/max. Cu 40/42
Al 36/37
7. Width of the-ring 5
8. Height of the-ring 10
9. Outer dia. of the end-ring 64.4

A4P-S106

AL/LD V03
3krpm
100Hz
V06
6krpm
200Hz
V09
9krpm
300Hz
V12
12krpm
400Hz
V15
15krpm
500Hz
V18
18krpm
600Hz
V21
21krpm
700Hz
V24
24krpm
800Hz
V27
27krpm
900Hz
V30
30krpm
1000Hz
V33
33krpm
1200Hz
Speed
L40 (40mm) 0.58 1.22 2.21 2.71 3.38 4.02 4.50 5.19 5.57 6.31 6.62 Power
[kW]
L50 (50mm) 0.75 1.67 2.61 3.46 4.30 5.04 5.75 6.70 7.49 8.01 8.45
L60 (60mm) 0.93 2.08 3.13 4.22 5.16 6.01 7.11 8.00 8.76 9.64 10.35
L70 (70mm) 1.02 2.37 3.64 4.99 5.96 7.25 8.40 9.20 10.42 11.56 12.86
L80 (80mm) 1.28 2.73 4.27 5.65 7.05 8.32 9.37 10.73 12.04 13.16 14.72
L90 (90mm) 1.14 3.10 4.67 6.22 8.00 9.28 10.67 12.25 13.58 15.28 16.15
L100 (100mm) 1.63 3.50 5.25 7.15 8.87 10.40 12.05 13.60 15.50 16.47 18.11
L110 (110mm) 1.80 3.86 5.80 7.70 9.54 11.36 13.24 15.42 16.67 18.41 19.91
L120 (120mm) 1.90 4.23 6.39 8.57 10.55 12.62 14.37 16.67 18.41 20.18 23.10
L130 (130mm) 2.10 4.49 6.86 9.10 11.37 14.07 16.55 18.98 20.95 23.17 25.06
L140 (140mm) 2.34 5.04 7.63 10.11 12.33 15.42 18.14 20.27 22.26 24.81 27.12
L150 (150mm) 2.50 5.41 8.33 11.12 13.72 16.54 19.47 21.82 24.24 26.67 29.01
Laminated
length
Power [kW]
CU/LD V03
3krpm
100Hz
V06
6krpm
200Hz
V09
9krpm
300Hz
V12
12krpm
400Hz
V15
15krpm
500Hz
V18
18krpm
600Hz
V21
21krpm
700Hz
V24
24krpm
800Hz
V27
27krpm
900Hz
V30
30krpm
1000Hz
V33
33krpm
1200Hz
Speed
L40 (40mm) 0.42 1.23 2.07 2.81 3.58 4.39 5.08 5.94 6.71 7.38 7.91 Power
[kW]
L50 (50mm) 0.60 1.61 2.58 3.59 4.45 5.38 6.67 7.44 8.53 9.27 10.10
L60 (60mm) 0.82 2.05 3.21 4.37 5.39 6.78 7.60 8.80 10.10 11.31 12.31
L70 (70mm) 0.98 2.40 3.75 5.11 6.70 7.88 9.29 10.95 12.12 13.68 14.71
L80 (80mm) 1.17 2.83 4.35 6.00 7.50 9.19 10.99 12.26 13.90 15.19 17.07
L90 (90mm) 1.40 3.62 4.99 6.78 8.63 10.17 12.18 13.95 15.32 17.43 19.07
L100 (100mm) 1.52 3.55 5.54 7.49 9.40 11.41 13.78 15.29 17.48 19.76 21.11
L110 (110mm) 1.67 4.00 6.22 8.48 10.24 12.45 14.90 17.21 19.52 21.18 23.66
L120 (120mm) 1.92 4.34 6.80 9.19 11.42 14.00 16.23 18.91 21.06 23.51 25.18
L130 (130mm) 2.03 4.74 7.39 9.96 12.39 15.10 17.68 20.69 22.69 25.10 27.78
L140 (140mm) 2.23 5.09 7.84 11.00 13.80 16.14 19.16 22.10 24.74 27.37 30.07
L150 (150mm) 2.47 5.60 8.56 11.37 14.13 17.58 20.85 23.62 25.66 29.21 31.35
Laminated
length
Power [kW]
AL/HD V03
3krpm
100Hz
V06
6krpm
200Hz
V09
9krpm
300Hz
V12
12krpm
400Hz
V15
15krpm
500Hz
V18
18krpm
600Hz
V21
21krpm
700Hz
V24
24krpm
800Hz
V27
27krpm
900Hz
V30
30krpm
1000Hz
V33
33krpm
1200Hz
Speed
L40 (40mm) 0.66 1.46 2.60 3.26 4.09 4.95 5.52 6.40 6.90 7.85 8.25 Power
[kW]
L50 (50mm) 0.85 1.97 3.14 4.17 5.27 6.20 7.12 8.24 9.30 9.92 10.48
L60 (60mm) 1.07 2.47 3.78 5.14 6.32 7.34 8.77 9.73 10.84 11.89 12.83
L70 (70mm) 1.29 2.90 4.52 6.05 7.83 9.13 10.57 12.24 12.65 15.27 16.09
L80 (80mm) 1.49 3.36 5.22 7.05 8.73 10.64 12.42 13.92 15.68 16.96 18.74
L90 (90mm) 1.67 3.83 5.86 7.95 10.02 12.13 13.92 15.88 17.35 19.50 21.62
L100 (100mm) 1.88 4.27 6.57 8.81 11.08 13.36 15.77 17.42 19.75 22.08 23.70
L110 (110mm) 2.13 4.72 7.35 9.86 12.41 15.00 16.98 19.50 22.16 23.84 26.35
L120 (120mm) 2.40 5.14 7.97 10.75 13.47 16.22 18.70 21.49 24.02 26.47 28.88
L130 (130mm) 2.54 5.63 8.67 11.65 14.83 17.41 20.36 23.56 25.98 28.49 31.11
L140 (140mm) 2.76 6.03 9.27 12.76 16.05 18.87 22.26 25.15 28.14 30.87 33.70
L150 (150mm) 3.05 6.51 10.11 13.55 16.79 20.35 23.98 26.98 29.97 33.09 35.62
Laminated
length
Power [kW]
CU/HD V03
3krpm
100Hz
V06
6krpm
200Hz
V09
9krpm
300Hz
V12
12krpm
400Hz
V15
15krpm
500Hz
V18
18krpm
600Hz
V21
21krpm
700Hz
V24
24krpm
800Hz
V27
27krpm
900Hz
V30
30krpm
1000Hz
V33
33krpm
1200Hz
Speed
L40 (40mm) 0.52 1.50 2.51 3.35 4.29 5.24 6.10 7.15 8.05 8.91 9.52 Power
[kW]
L50 (50mm) 0.72 1.95 3.09 4.29 5.33 6.43 8.05 8.98 10.35 11.20 12.16
L60 (60mm) 0.97 2.47 3.81 5.26 6.43 8.13 9.53 11.10 12.19 13.60 14.83
L70 (70mm) 1.15 2.86 4.50 6.12 8.07 9.54 11.22 13.36 14.73 16.58 18.06
L80 (80mm) 1.39 3.40 5.23 7.41 9.02 11.15 13.38 14.84 16.79 18.44 20.93
L90 (90mm) 1.64 4.25 6.00 8.10 10.41 12.76 14.78 16.81 18.53 21.20 23.71
L100 (100mm) 1.78 4.30 6.64 8.99 11.27 13.67 16.69 18.51 21.27 23.89 25.46
L110 (110mm) 1.98 4.77 7.45 10.28 12.26 14.94 18.23 21.04 24.23 26.06 29.25
L120 (120mm) 2.25 5.25 8.21 11.10 13.64 16.81 19.68 22.68 25.46 29.08 31.33
L130 (130mm) 2.39 5.74 8.83 12.04 14.88 18.34 21.40 25.14 27.73 30.34 33.87
L140 (140mm) 2.59 6.09 9.41 13.33 16.65 19.67 23.34 26.80 30.10 33.60 36.92
L150 (150mm) 2.90 6.75 10.26 13.90 17.41 21.31 25.27 29.19 31.66 36.29 40.19
Laminated
length
Power [kW]

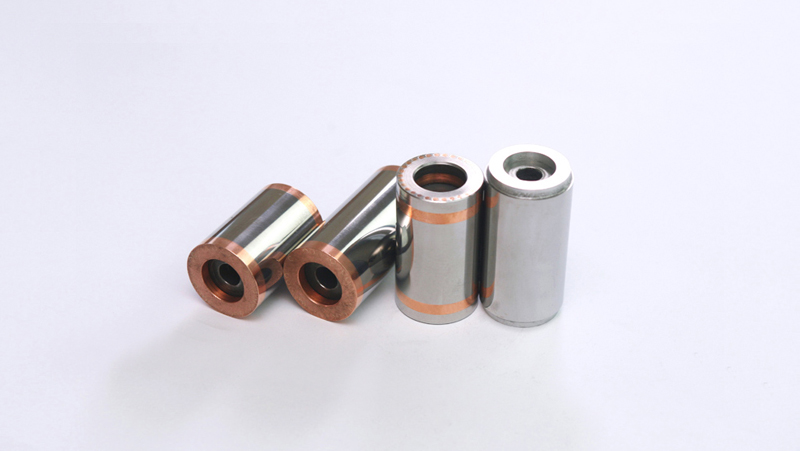

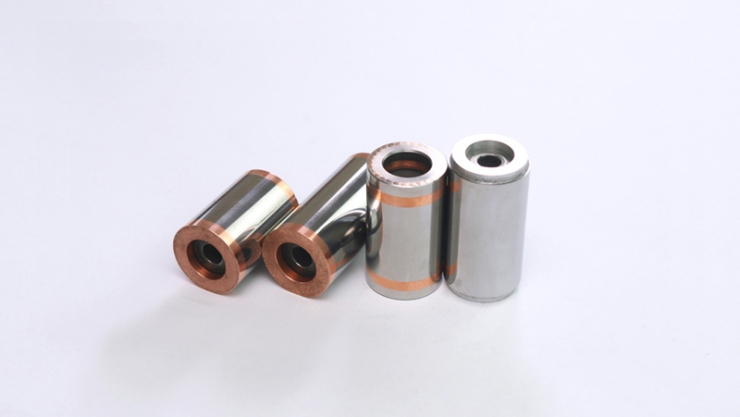

  • CU

    The bars and end-rings in the rotor are made from copper to ensure high motor efficiency. This also allows for decreased vibrations from rotation as the shaft is thicker than those used in aluminum rotors.

  • AL

    The bars and end-rings in the rotor are made from aluminum which provides an excellent balance between price and performance.

  • LD

    This stator is dipped into the insulation vanish. It is our most common model which is suitable to general spindle motors.

  • HD

    This copper coil of the stator is filled with special resin which helps to decrease the temperature of coils.
